Splino M1 Inot | 12W
SP 7013

SP - 7013

Description

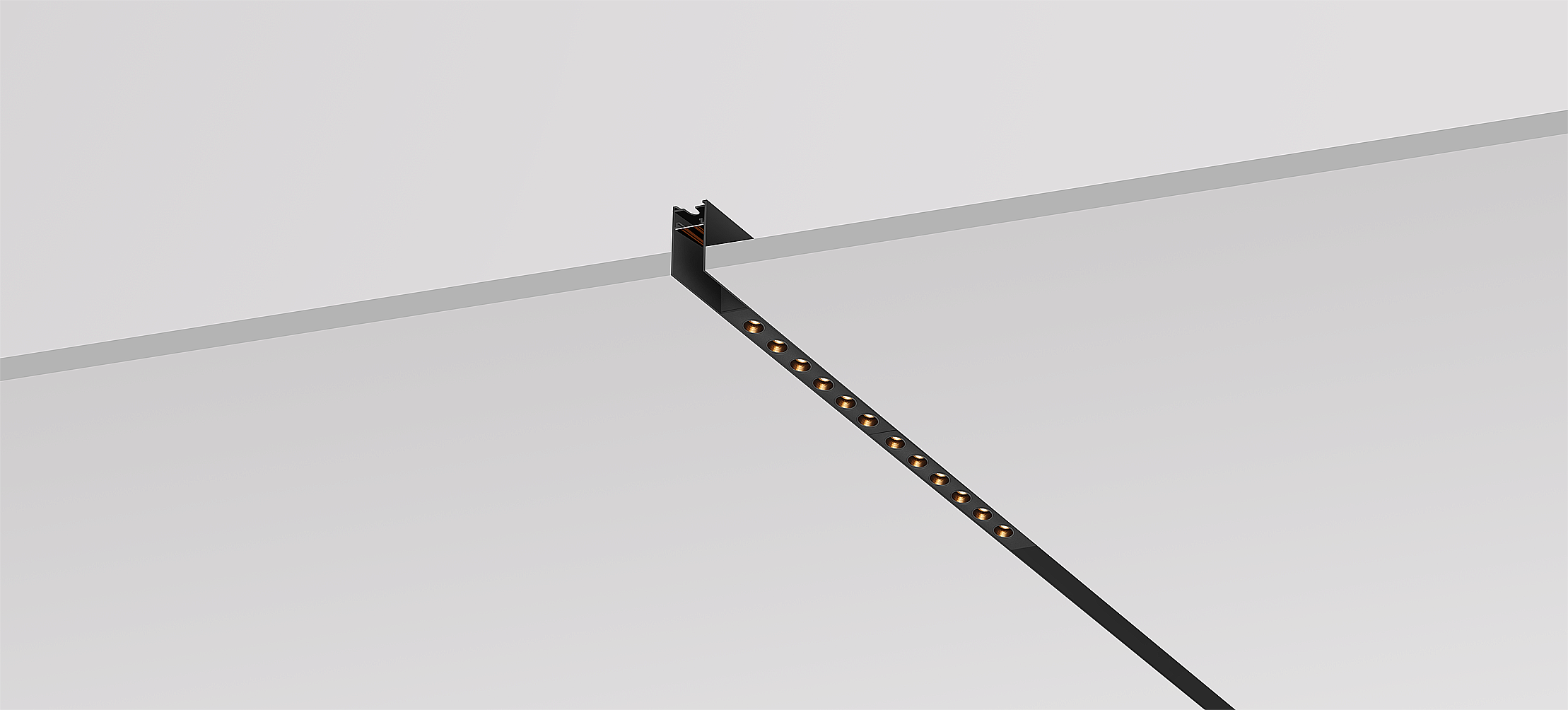

Recess sleek light continuous module for general lighting. The luminaire is comprised of a 34mm extruded aluminum profile which integrates perfectly into ceiling/wall. It enables to create linear patterns throughout the rooms, connecting and creating unique lighting feature from the wall to ceiling. This mobility converts the Line into an extremely flexible product which not only permits varying the distribution of the lighting modules but also the possibility of adding more modules along the track.

Features

Wattage: 12W
CCT: 2700K | 3000K | 4000K | 6000K
CRI: > 90
Beam Angle : 12° | 20° | 30°
Control: On/Off | DALI
Ingress Protection: IP20
Lumen delivered up to 1080 lm

Features

SKU SP - 7013 Category
Wattage: 12W
CCT: 2700K | 3000K | 4000K | 6000K
CRI: > 90
Beam Angle : 12° | 20° | 30°
Control: On/Off | DALI
Ingress Protection: IP20
Lumen delivered up to 1080 lm

Description

Recess sleek light continuous module for general lighting. The luminaire is comprised of a 34mm extruded aluminum profile which integrates perfectly into ceiling/wall. It enables to create linear patterns throughout the rooms, connecting and creating unique lighting feature from the wall to ceiling. This mobility converts the Line into an extremely flexible product which not only permits varying the distribution of the lighting modules but also the possibility of adding more modules along the track.

SP7013_Splino-M1-Inot_12W
*ALL DIMENSIONS ARE IN MILLI METER
  • Type    : Recess sleek light magnetic module
  • Use      : Indoor
  • Finish  : Matt Black, Matt White
  • Input   : 120 ~ 240 Vac - 50/60 Hz
  • Class  : |||
