Inlet | 1W
SP 3071
SP - 3071
Description

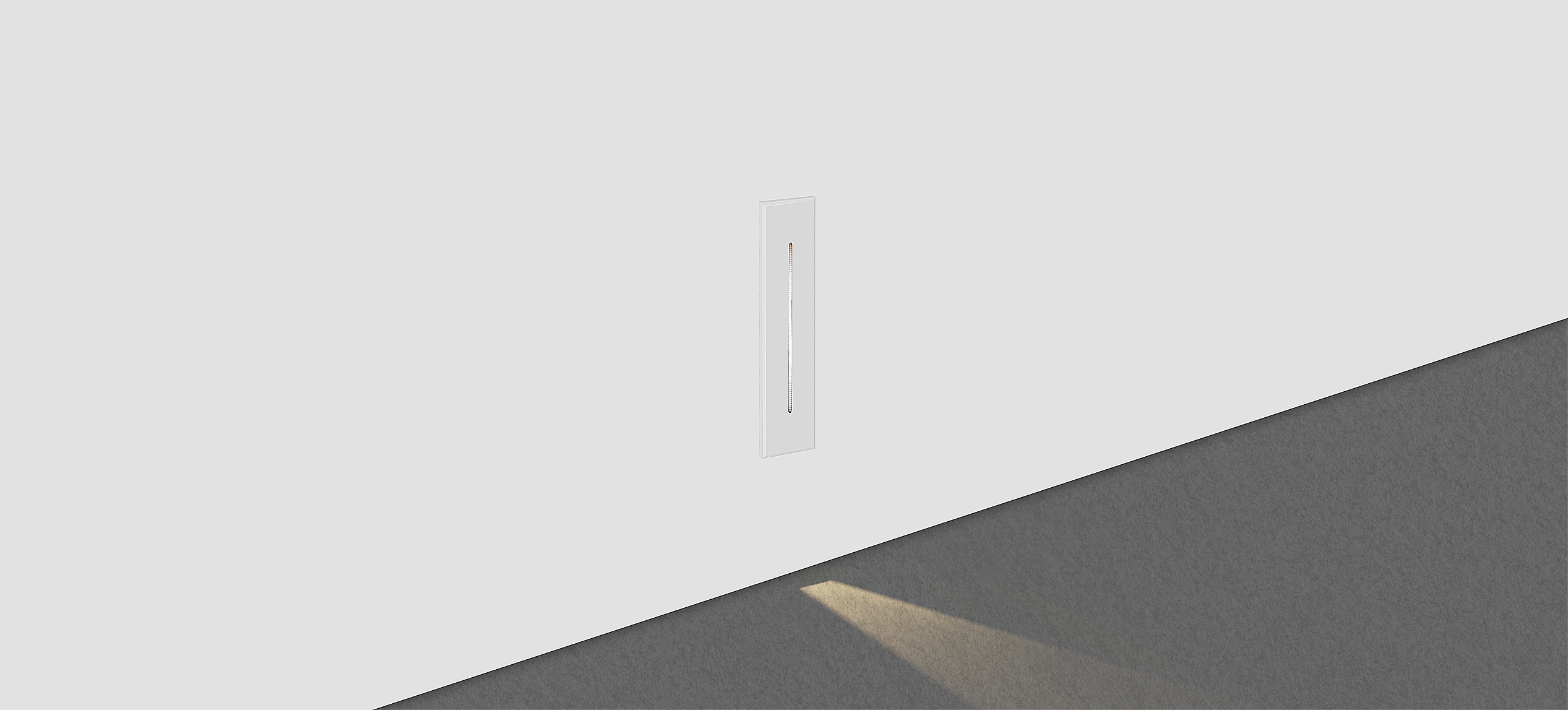

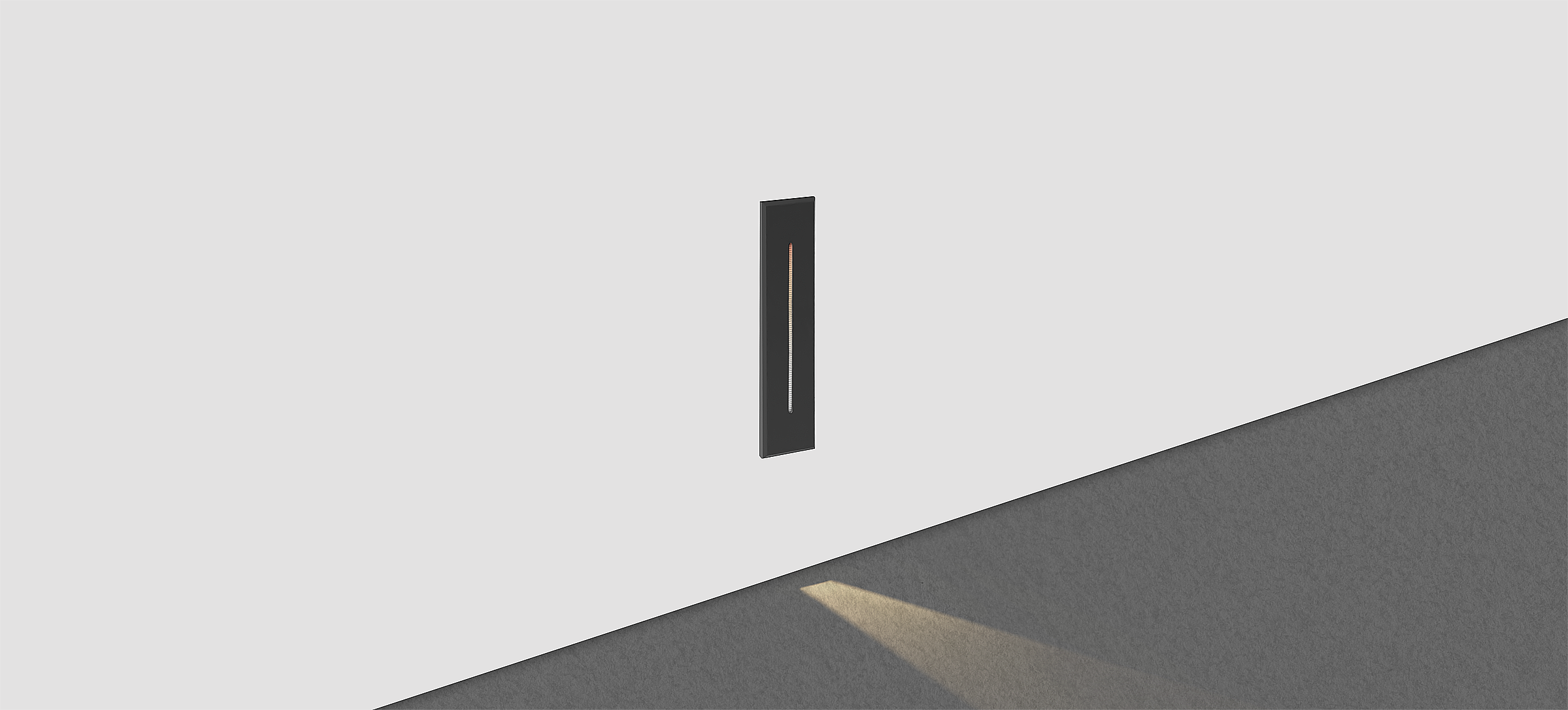

Wall recessed mini luminaire for guidance light in hall ways and staircases. A narrow beam of light produces a triangular shaped light effect on the floor. Housing made of die-cast aluminum with surrounding bezel. Surface white, black or grey powder coating suitable for installation in plaster board or reflector with asymmetric light distribution.
Features
Wattage: 1W
CCT: 3000K
CRI: > 90
Beam Angle : 15° | 26° | 36°
Control: On/Off | DALI
Ingress Protection: IP20 | IP65
Lumen delivered up to 92 lm
CCT: 3000K
CRI: > 90
Beam Angle : 15° | 26° | 36°
Control: On/Off | DALI
Ingress Protection: IP20 | IP65
Lumen delivered up to 92 lm
Features
Wattage: 1W
CCT: 3000K
CRI: > 90
Beam Angle : 15° | 26° | 36°
Control: On/Off | DALI
Ingress Protection: IP20 | IP65
Lumen delivered up to 92 lm
CCT: 3000K
CRI: > 90
Beam Angle : 15° | 26° | 36°
Control: On/Off | DALI
Ingress Protection: IP20 | IP65
Lumen delivered up to 92 lm
Description
Wall recessed mini luminaire for guidance light in hall ways and staircases. A narrow beam of light produces a triangular shaped light effect on the floor. Housing made of die-cast aluminum with surrounding bezel. Surface white, black or grey powder coating suitable for installation in plaster board or reflector with asymmetric light distribution.
*ALL DIMENSIONS ARE IN MILLI METER
- Type : Wall Recessed Guidance Light
- Use : Indoor
- Finish :
Matt Black,
Matt White - Input : 120 ~ 240 Vac - 50/60 Hz
- Class : |||
