Arats | 10W
SP 2096

SP - 2096

Description

Low luminance fixed deep recess LED down lighter anodized aluminium body with white painted die-cast aluminium bezel. Anti-glare aluminium reflector. Painted steel-spring mounting system. Junction box with tab to facilitate cable insertion and electrical connections. Polished anodized reflective coating with clear glass, 10W Led inside. Excellent heat sink capability to minimize the luminous degradation, remote LED driver to be order separately.

Features

Wattage: 10W
CCT: 2700K | 3000K | 4000K | 6000K
CRI: > 90
Beam Angle : 24° | 40° | 60°
Control: On/Off | DALI | TRIAC | 0-10V
Ingress Protection: IP20
Lumen delivered up to 900 lm

Features

SKU SP - 2096 Categories ,
Wattage: 10W
CCT: 2700K | 3000K | 4000K | 6000K
CRI: > 90
Beam Angle : 24° | 40° | 60°
Control: On/Off | DALI | TRIAC | 0-10V
Ingress Protection: IP20
Lumen delivered up to 900 lm

Description

Low luminance fixed deep recess LED down lighter anodized aluminium body with white painted die-cast aluminium bezel. Anti-glare aluminium reflector. Painted steel-spring mounting system. Junction box with tab to facilitate cable insertion and electrical connections. Polished anodized reflective coating with clear glass, 10W Led inside. Excellent heat sink capability to minimize the luminous degradation, remote LED driver to be order separately.

SP2096_Arats_10W

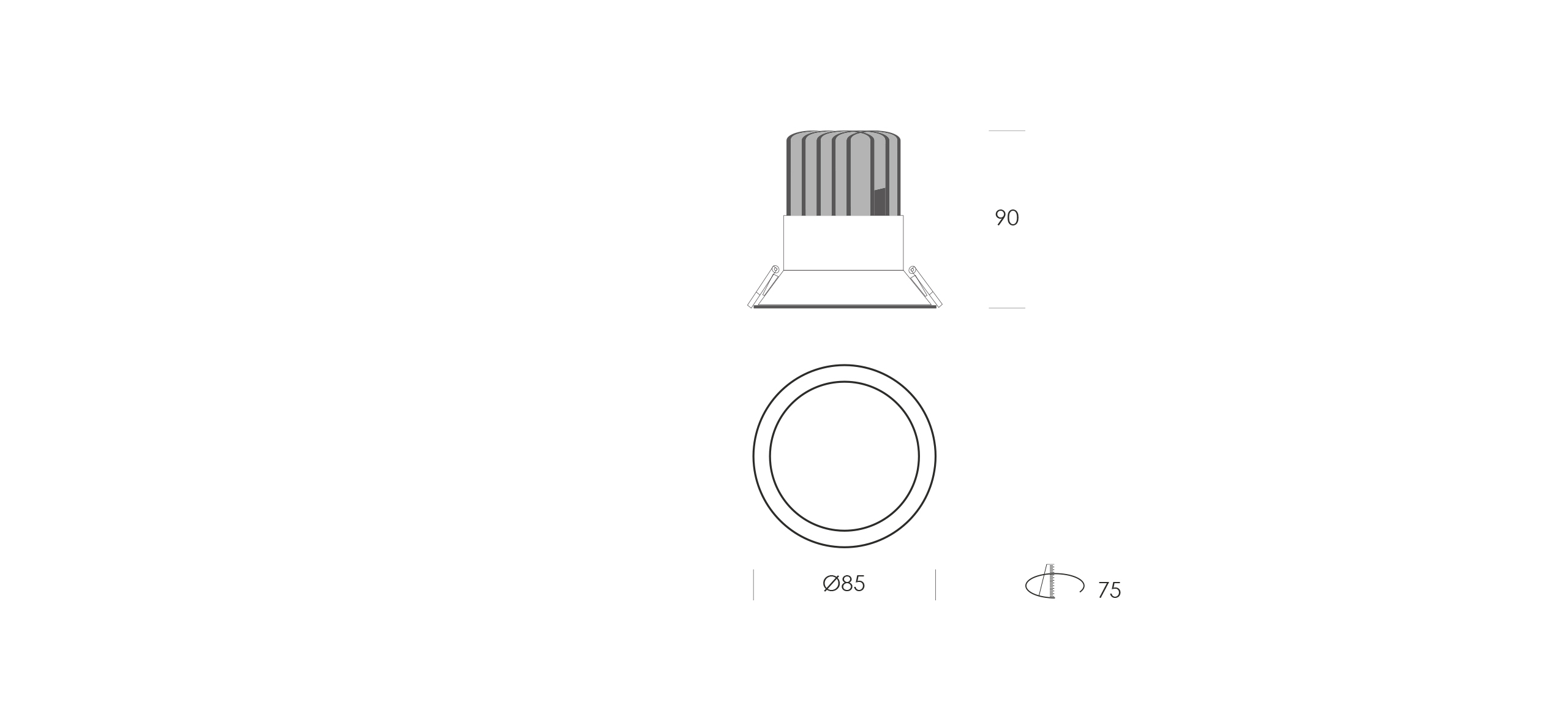

*ALL DIMENSIONS ARE IN MILLI METER
  • Type    : Recess LED Downlight
  • Use      : Indoor
  • Finish  : Matt Black, Matt White
  • Input   : 120 ~ 240 Vac - 50/60 Hz
  • Class  : |||
